Schema for the XML headers of the SDM Binary Data Format (vers. 0.94)

Super-types:	CorrelationModeDataConstraint < AutoDataAbstract (by extension) < AutoDataFullResolution (by extension)
Sub-types:	None

Name	AutoDataFullResolution
Abstract	no
Documentation	This type must be used when there are zeroLags auxiliary data to be stored. Would that be not the case, use the AutoData type.

XML Instance Representation

<...

mode="AUTO_ONLY [0..1]"

resolution="FULL_RESOLUTION [0..1]">

Start Sequence [1..*]

End Sequence

<baseband

ref="BasebandName [0..1]"> [1..4]

Start Sequence [1..32]

<spectralWindow> DataDescriptionAutoOnly </spectralWindow> [1]

End Sequence

</baseband>

</...>

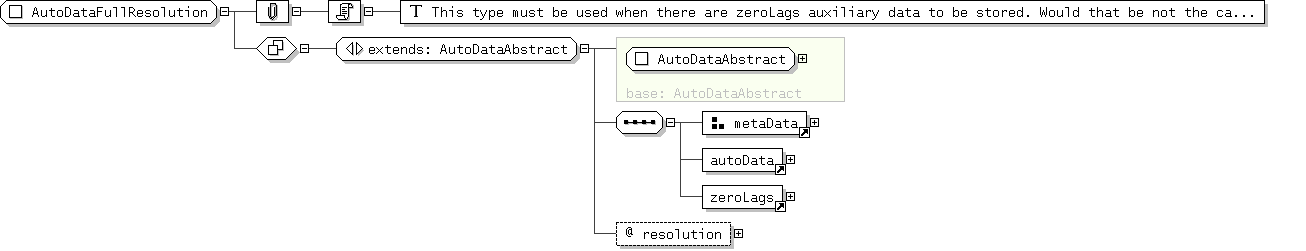

Diagram

Schema Component Representation

<xs:complexType name="AutoDataFullResolution">

<xs:complexContent>

<xs:extension base="AutoDataAbstract">

<xs:sequence>

<xs:group ref="metaData"/>

<xs:element ref="autoData"/>

<xs:element ref="zeroLags"/>

</xs:sequence>

<xs:attribute name="resolution" type="SpectralResolution" fixed="FULL_RESOLUTION"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
