Schema for the XML headers of the SDM Binary Data Format (vers. 0.94)

Super-types:	BinaryData < BinaryAutoDataAbstract (by extension) < BinaryAutoDataFullResolution (by extension)
Sub-types:	None

Name	BinaryAutoDataFullResolution
Abstract	no
Documentation	Type to be used in conjunction with the type AutoDataFullResolution.

XML Instance Representation

<...

baselineFlags="BaselineFlagsId [0..1]"

actualTimes="ActualTimesId [1]"

actualDurations="ActualDurationsId [1]"

autoData="AutoDataId [1]"

mode="AUTO_ONLY [0..1]"

zeroLags="ZeroLagsId [1]"

resolution="FULL_RESOLUTION [0..1]"/>

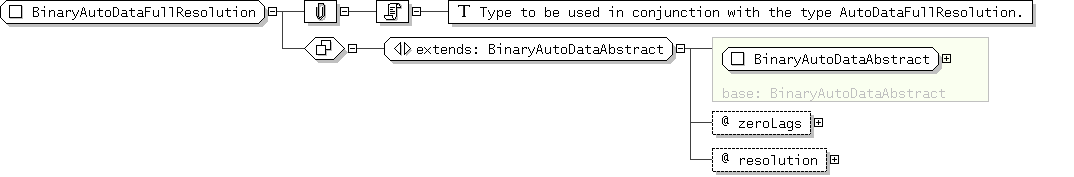

Diagram

Schema Component Representation

<xs:complexType name="BinaryAutoDataFullResolution">

<xs:complexContent>

<xs:attribute name="zeroLags" type="ZeroLagsId" use="required"/>

<xs:attribute name="resolution" type="SpectralResolution" fixed="FULL_RESOLUTION"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
